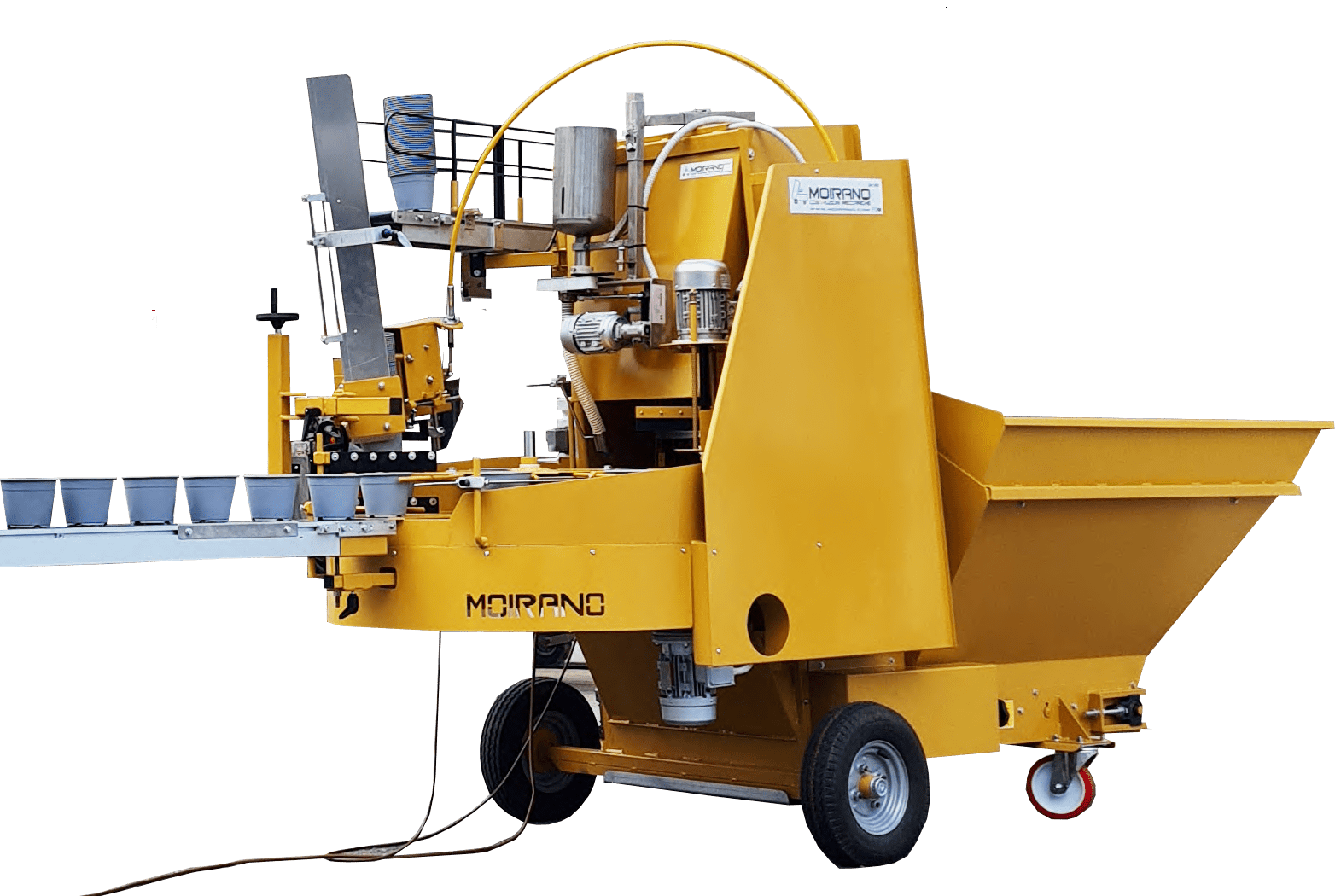

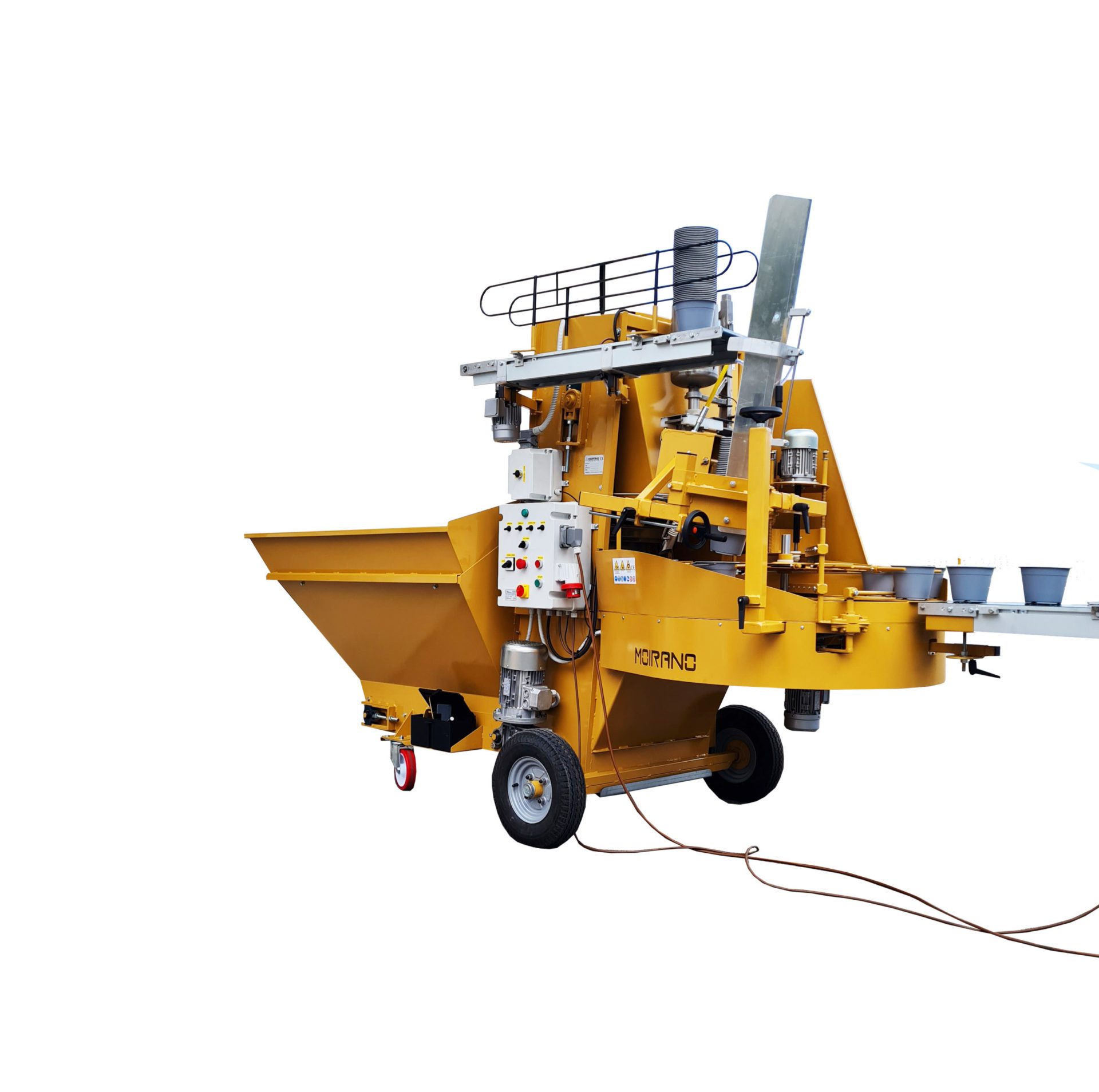

AUTOMATIC POTTING MACHINE EK 3000 AT

Automatic Potting Machine EK 3000 AT - High Efficiency, Robust and Made in Italy for Nurseries and Garden Centres

Description

Automatic Potting Machine for Potted Plants EK 3000 AT — Innovation and Reliability Made in Italy.

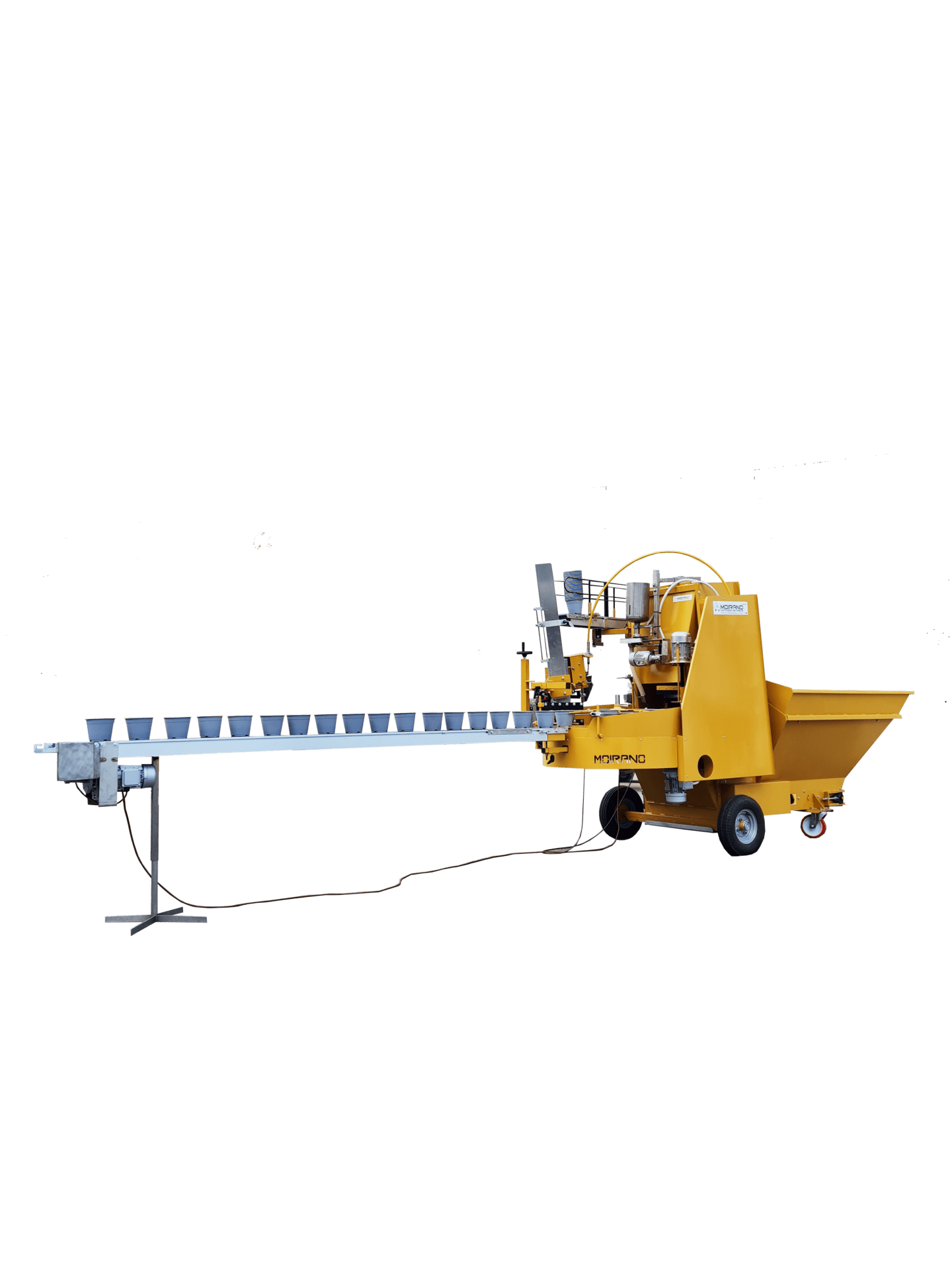

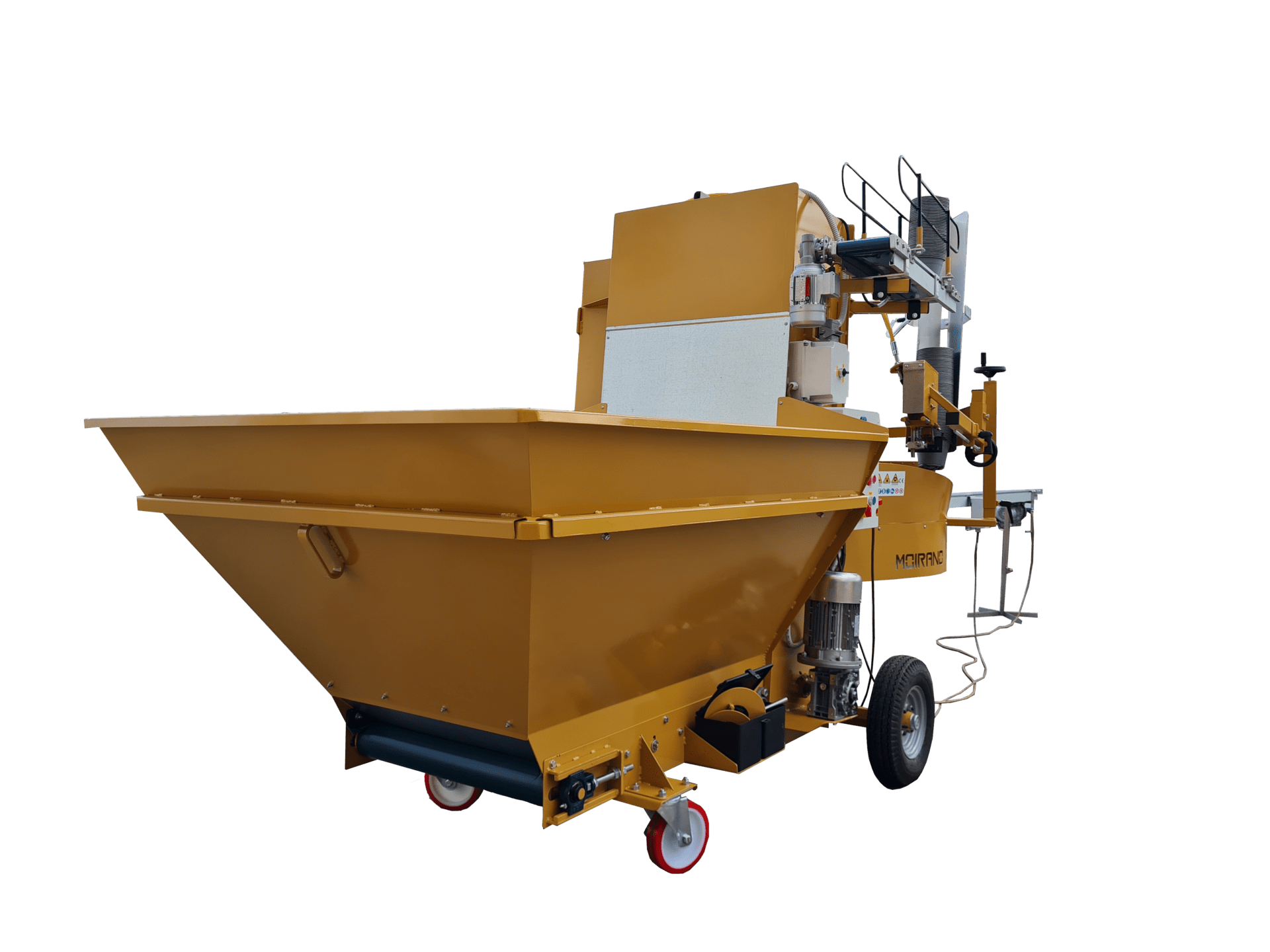

The EK 3000 AT automatic pot plant potting machine from MOIRANO® is the ideal solution for nurseries and horticultural companies that need a fast, precise and highly efficient potting system. With its potting capacity of up to 3800 pots/hour, this automatic potting machine for pot plants is designed to optimise working time and ensure uniform, high-quality production.

Constructed entirely of painted steel, the EK 3000 AT is distinguished by its robustness and durability. Every component is designed to withstand wear and tear and ensure a long service life, minimising maintenance requirements.

Simple and Fast Operation

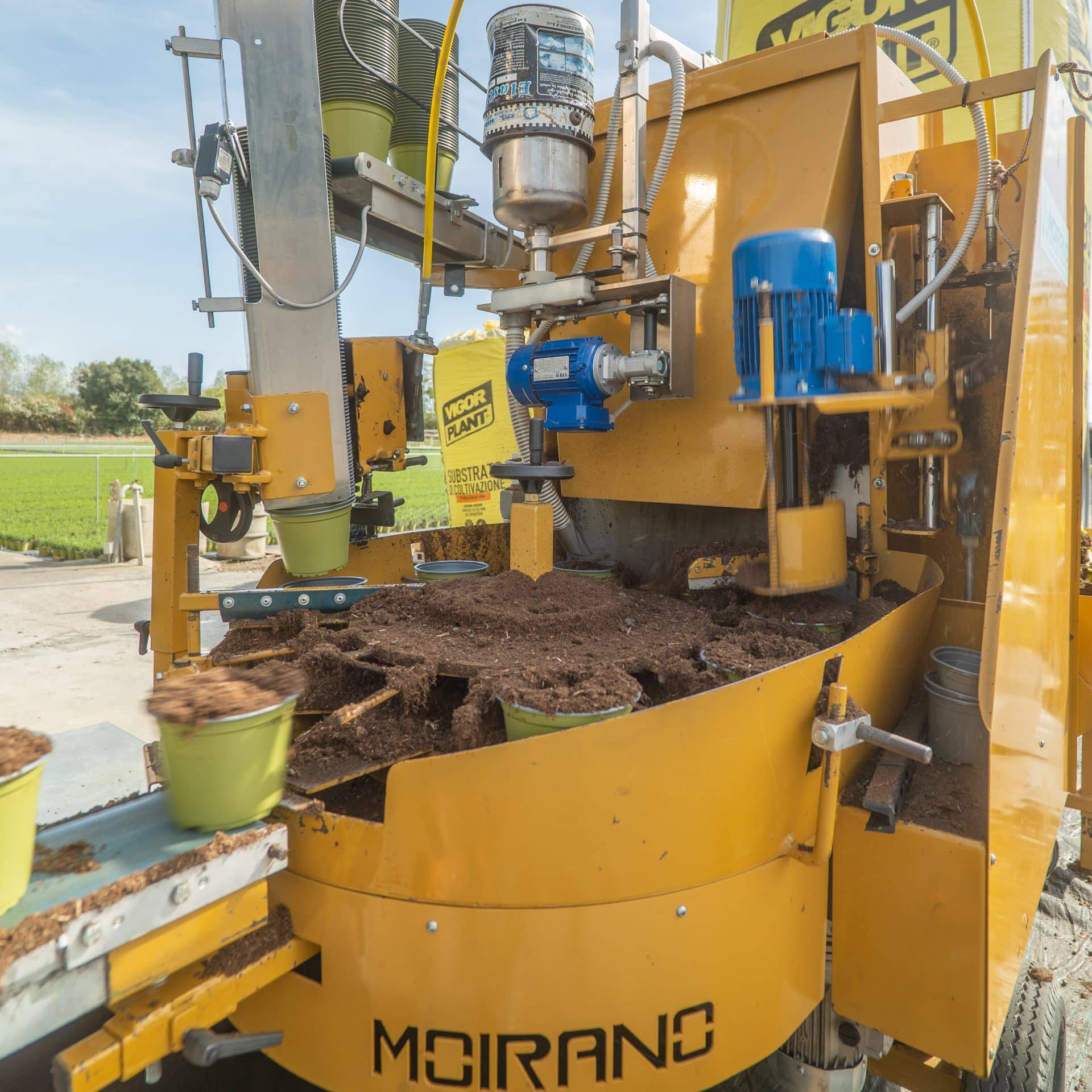

The EK 3000 AT potting machine is equipped with an automatic pot decanter, adjustable from Ø 10 to Ø 24 cm, and a 9-station pot carousel with automatic ejection arm. The machine is able to orient the repotting belt in three directions for optimal work flow, while the potting speed is adjustable from 300 to 3800 pots/hour, depending on production requirements.

High Quality and Easy Maintenance
The EK 3000 AT is fully mechanical and designed to be easily adjusted and maintained, reducing operating costs. The robust construction and innovative design guarantee continuous and trouble-free operation, with the possibility to adapt to thermoformed pots from Ø 10 to Ø 24 cm.

Reliability Made in Italy
Like all MOIRANO® machines, the EK 3000 AT potting machine is manufactured entirely in Italy from the highest quality materials, offering advanced, high-tech solutions for the horticultural sector. With MOIRANO®, every investment is a guarantee of efficiency and reliability.

EK 3000 AT 4.0
Advanced Technology for Simplified Handling

The EK 3000 AT 4.0 potter is equipped with an advanced control unit that allows you to program and monitor production via Wi-Fi. Thanks to the remote connection, you can control machine parameters directly from your smartphone, tablet or PC, and receive detailed reports on productivity and operating status. In addition, the remote diagnostics system allows rapid identification of any faults, optimising service and reducing downtime.

Features

Main

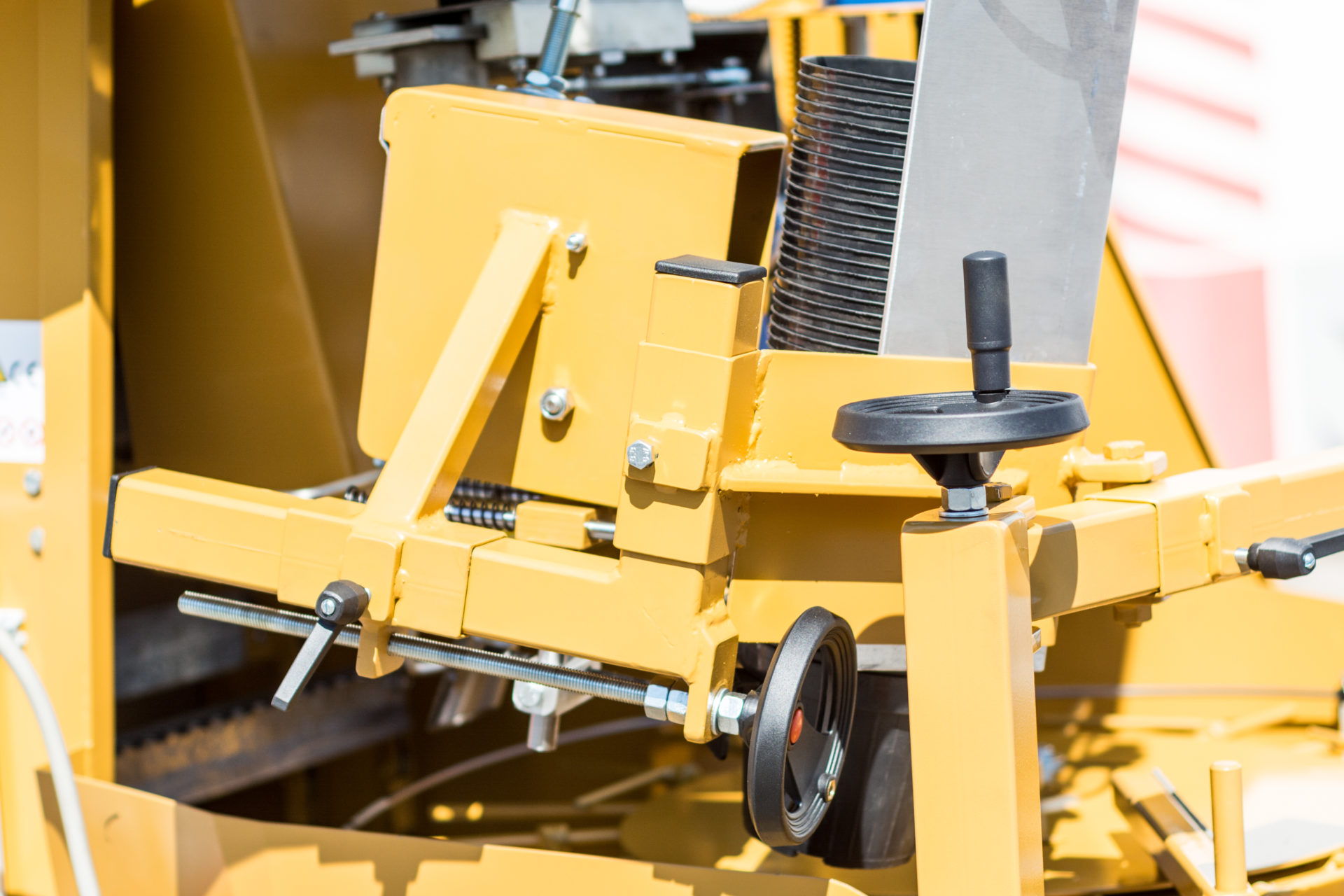

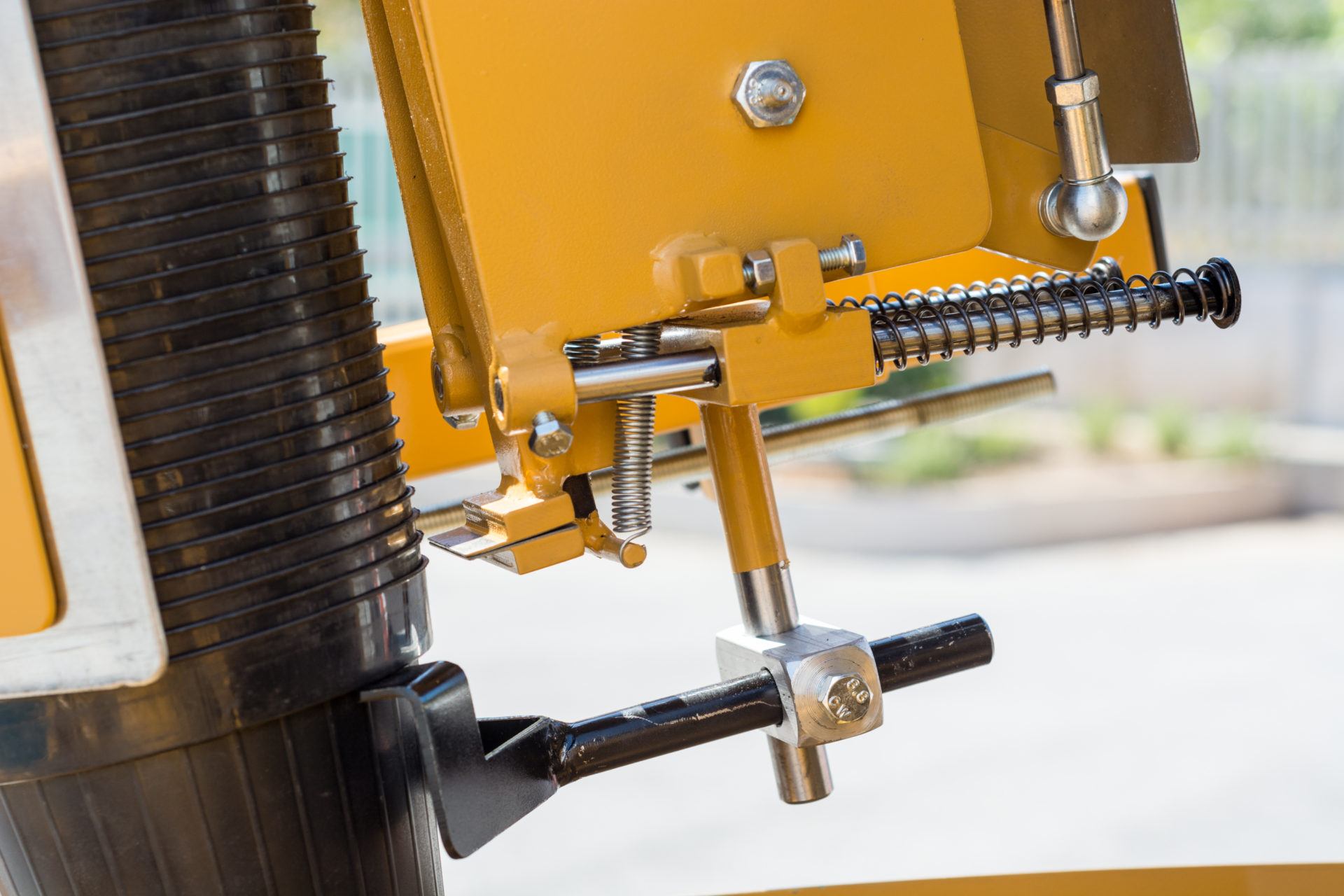

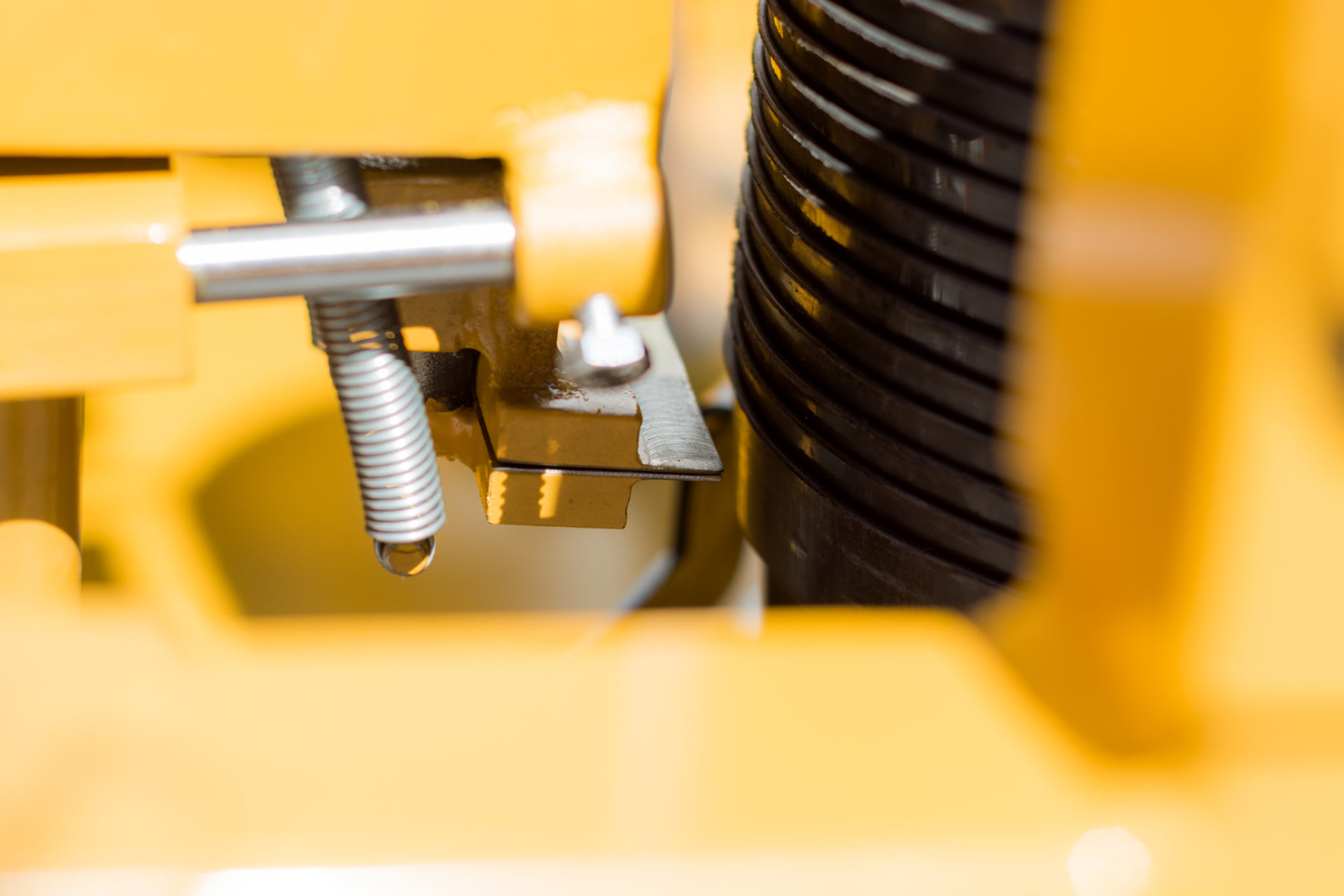

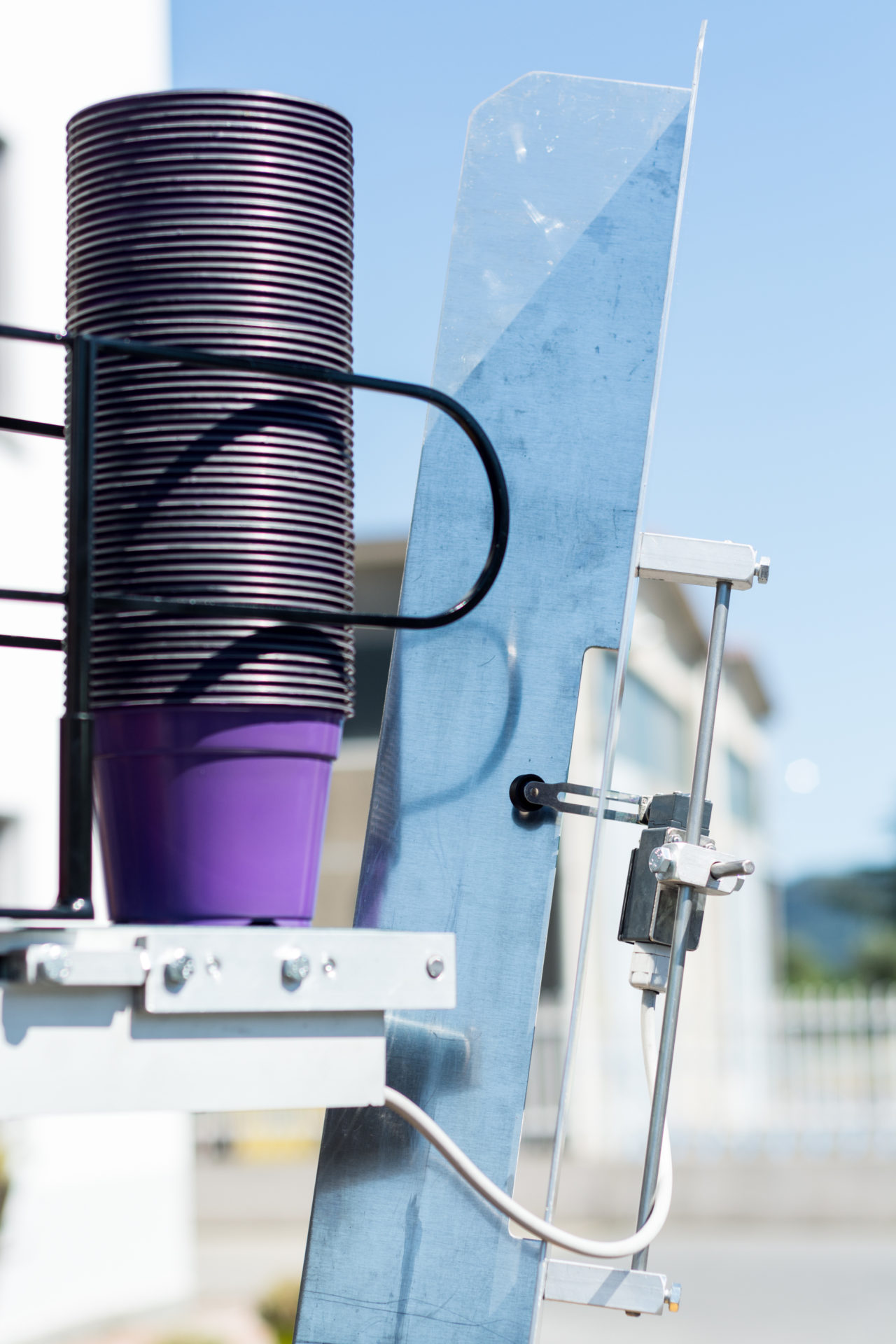

Automatic pot destacker that can be adjusted for pots from Ø 10 to Ø 24

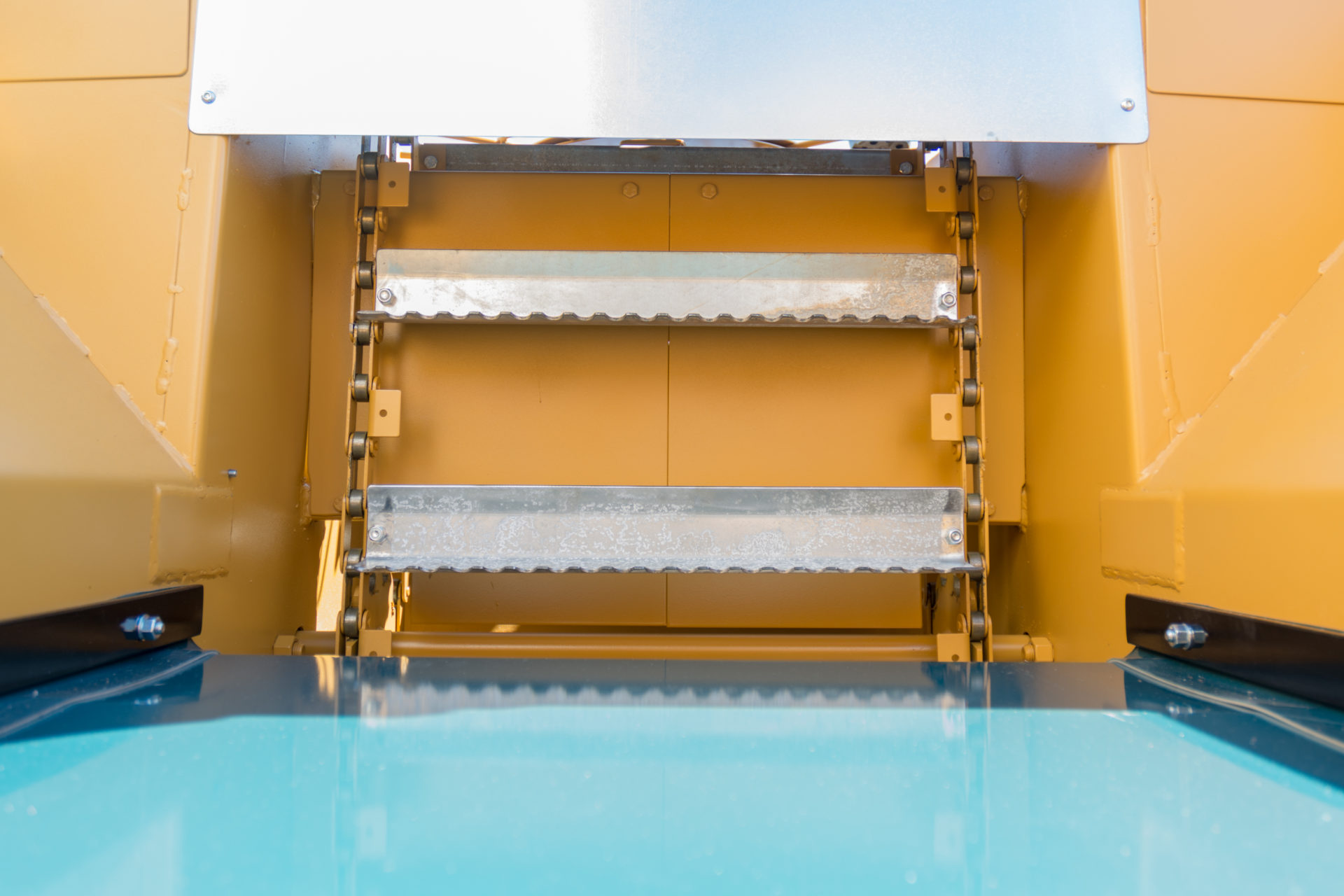

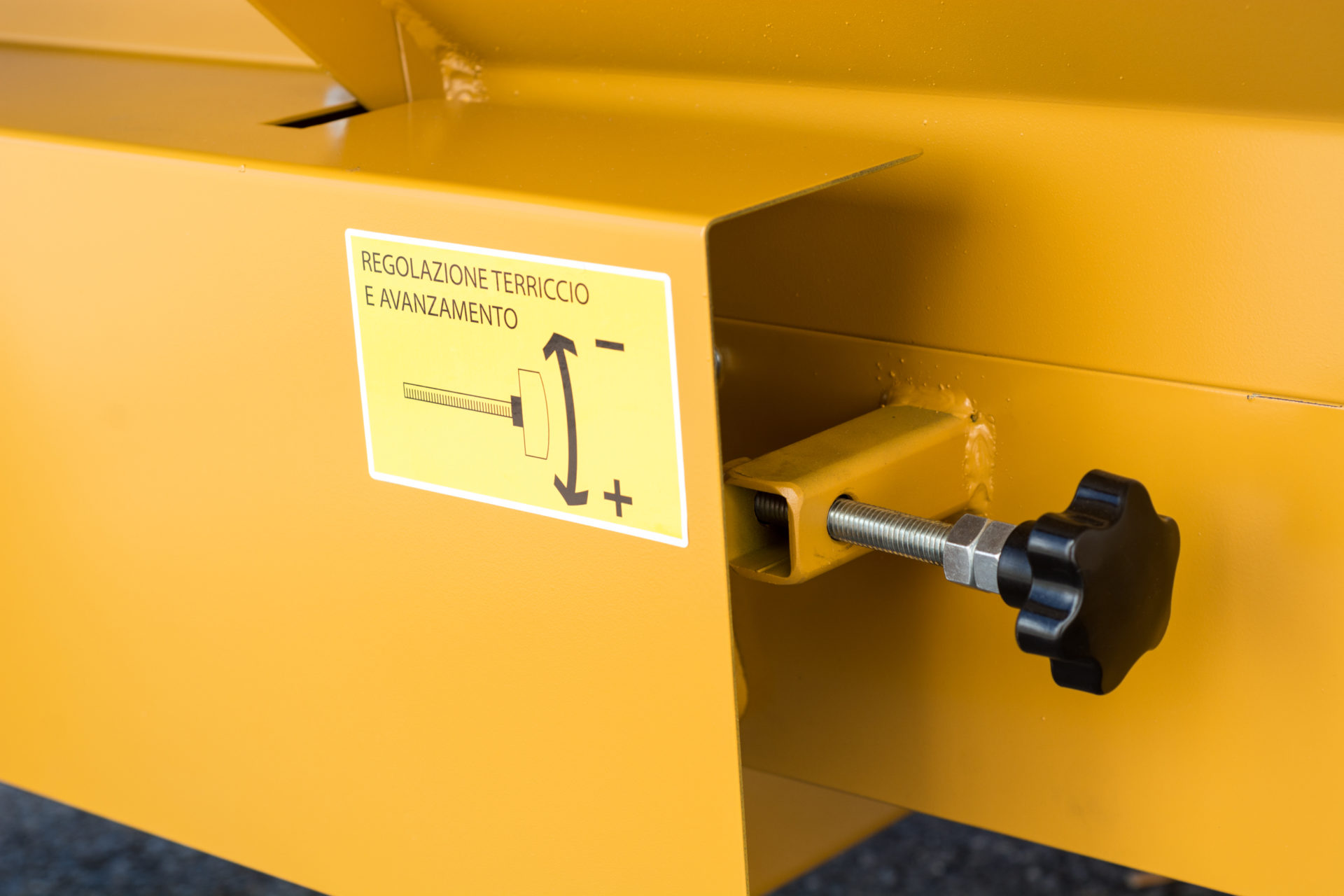

Adjustable speed peat delivery conveyor belt
Automatic pot expulsion arm

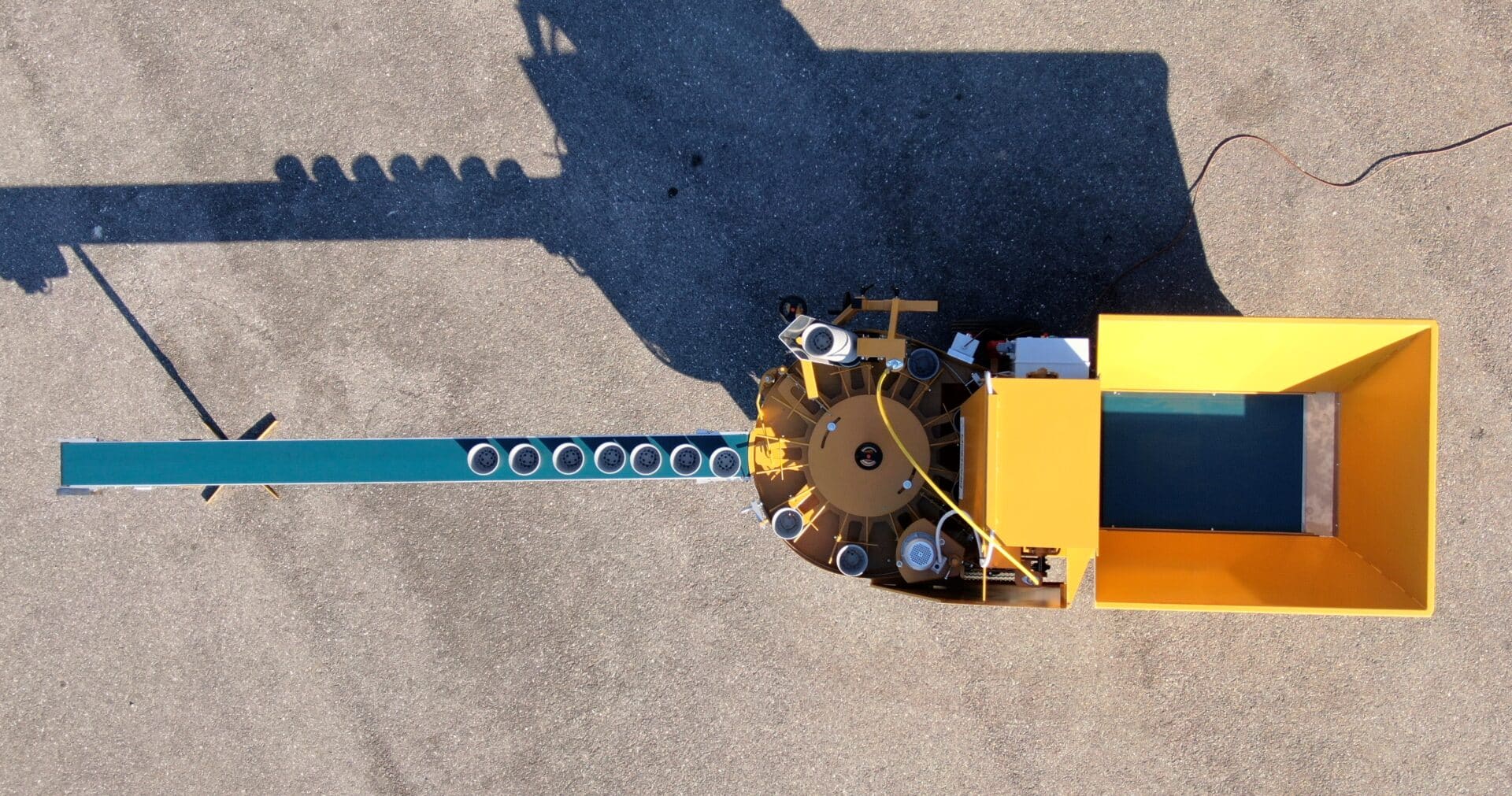

3m pot output conveyor belt that can be set in 3 directions
Potting speed can be regulated from a minimum of 300 to a maximum of 3800 pots per hour

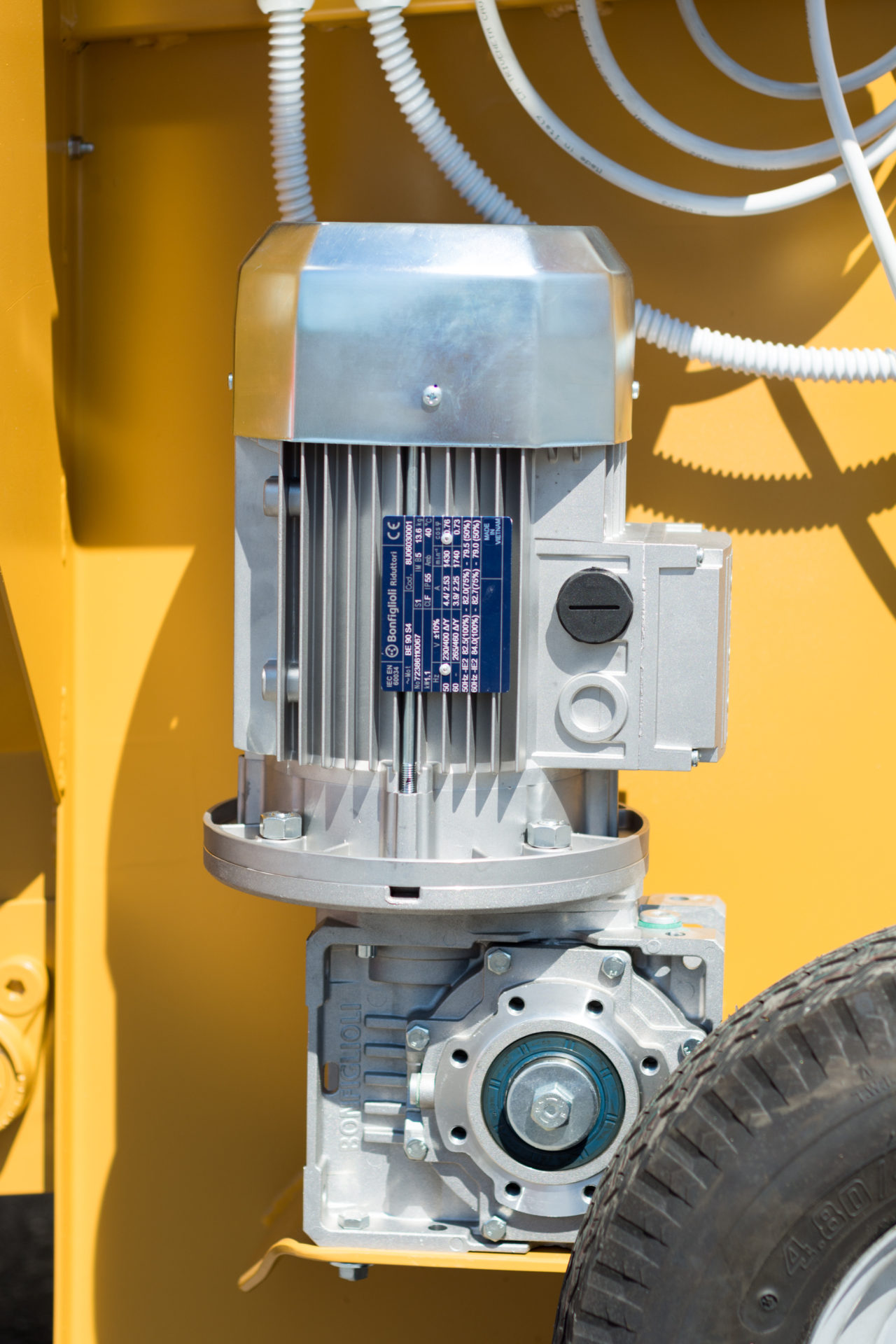

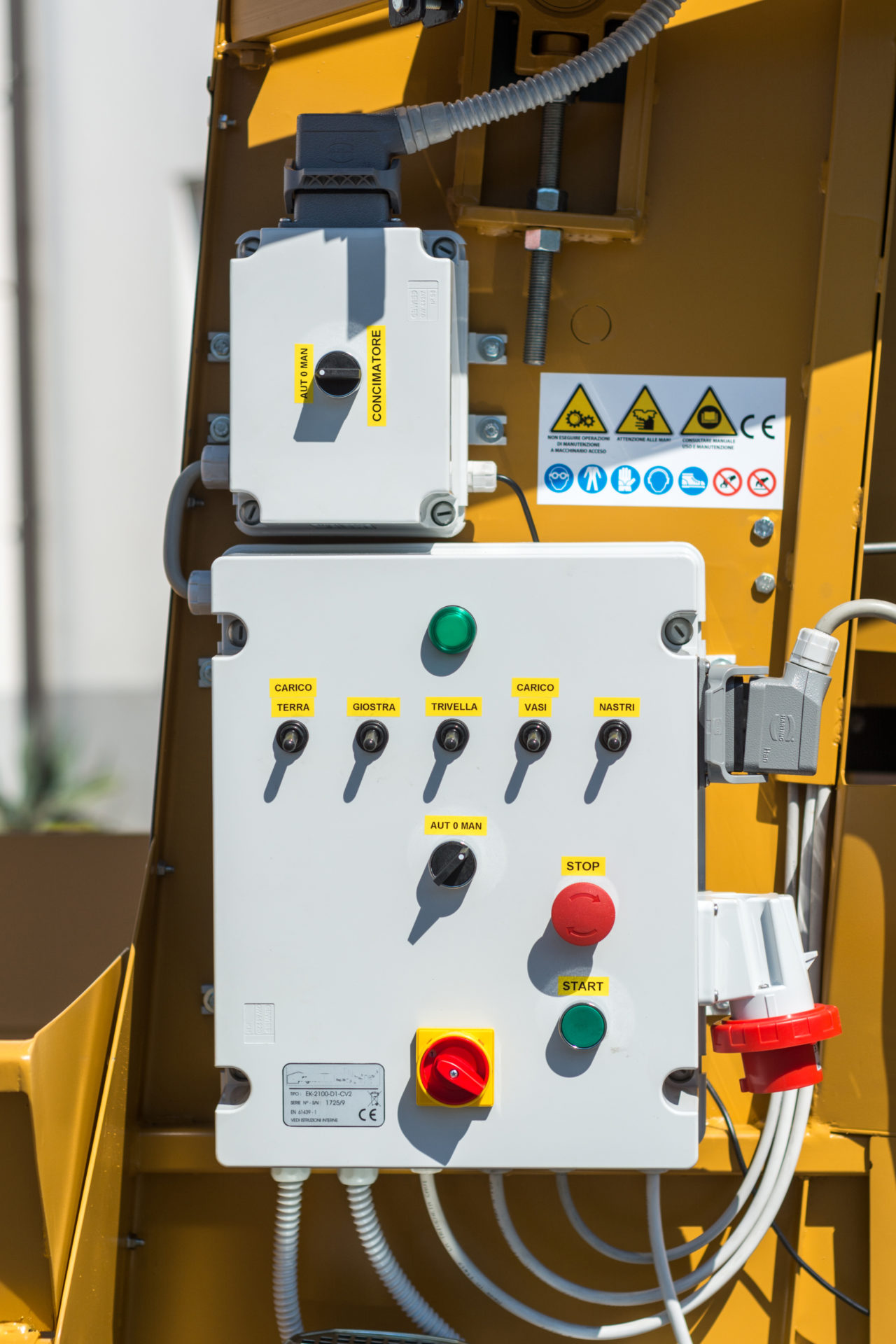

1.5 Hp motor for dual speed peat loading, adjusted through the control panel

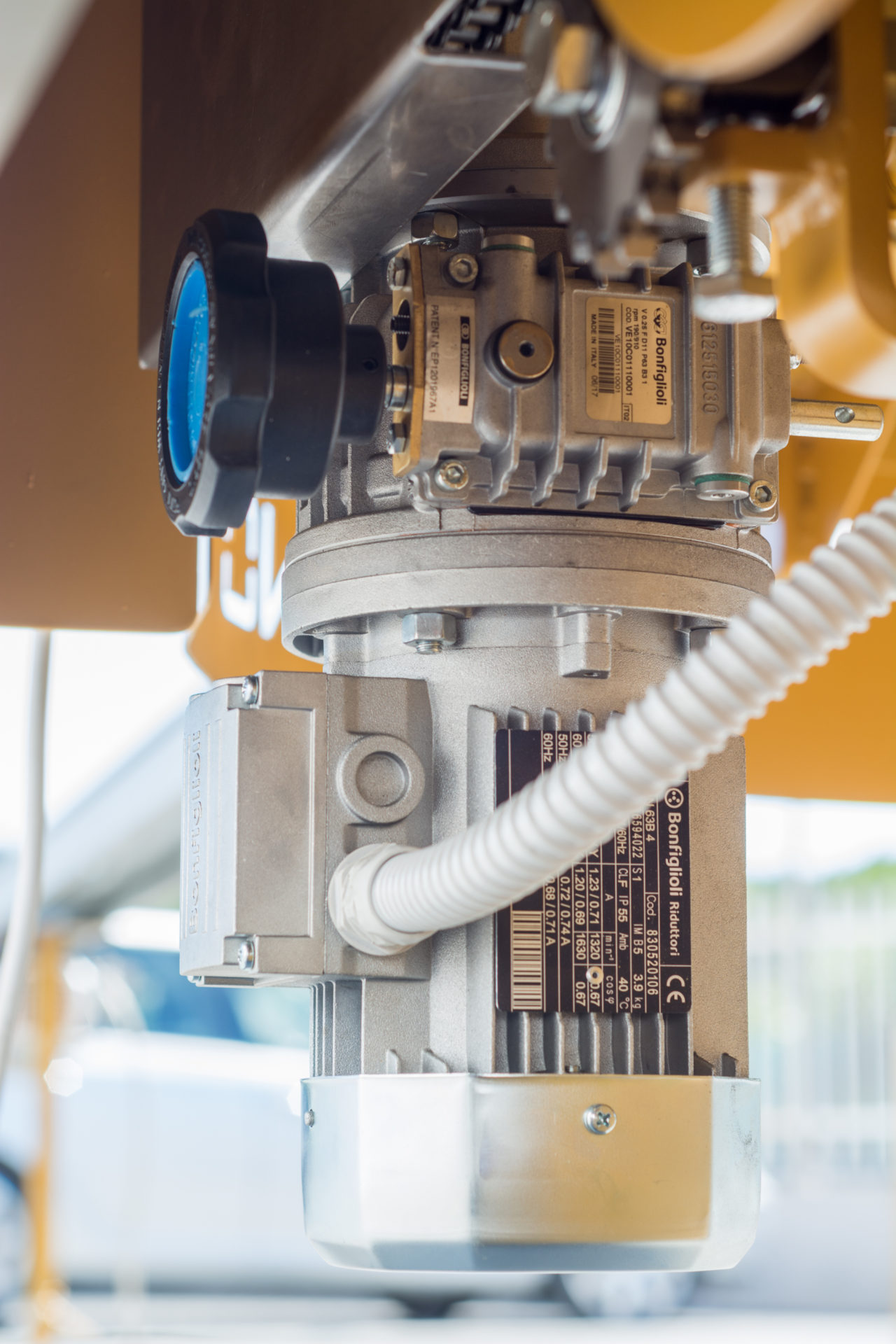

Pot loading carousel with 0.25 Hp motor and mechanical controller for simple speed variation

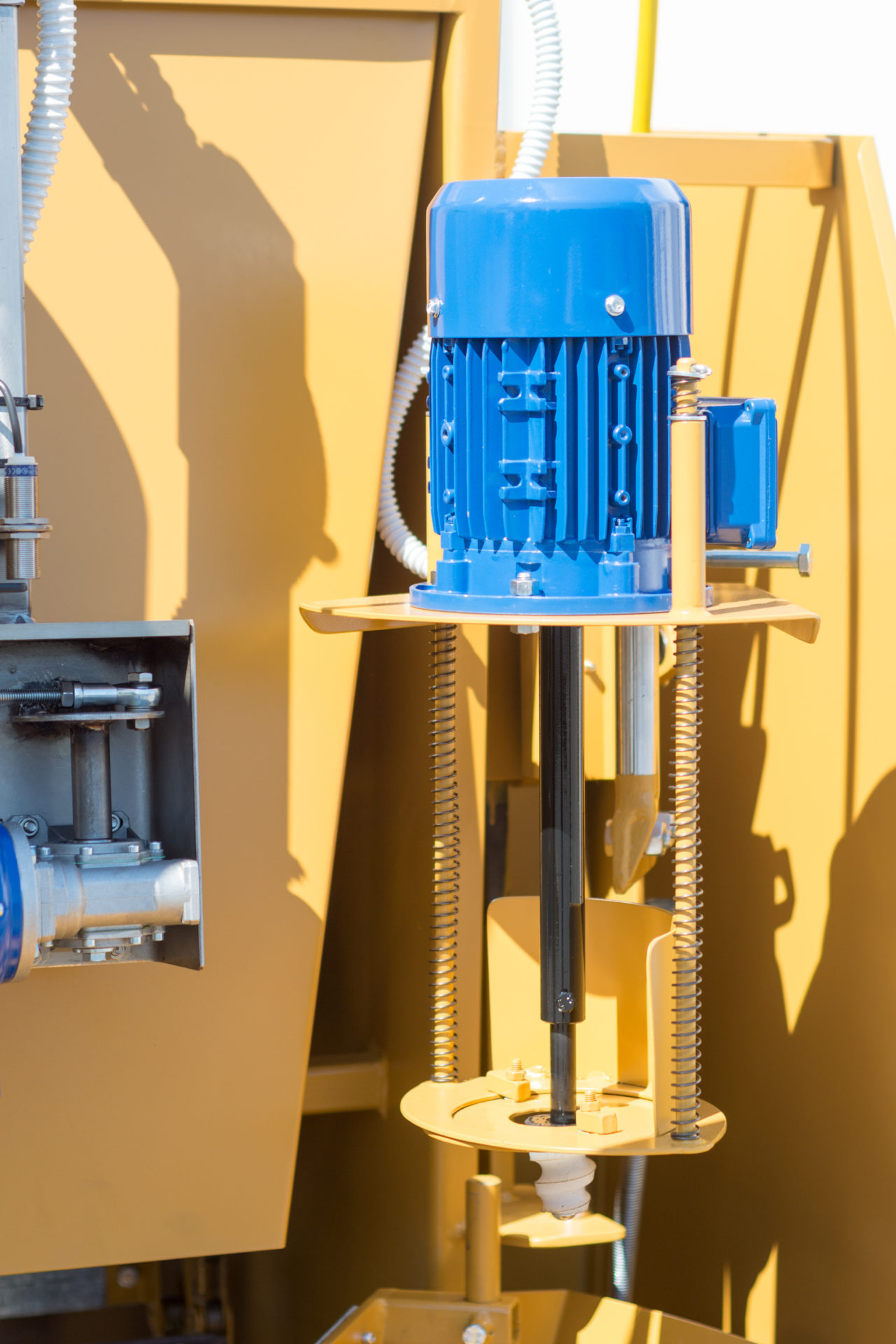

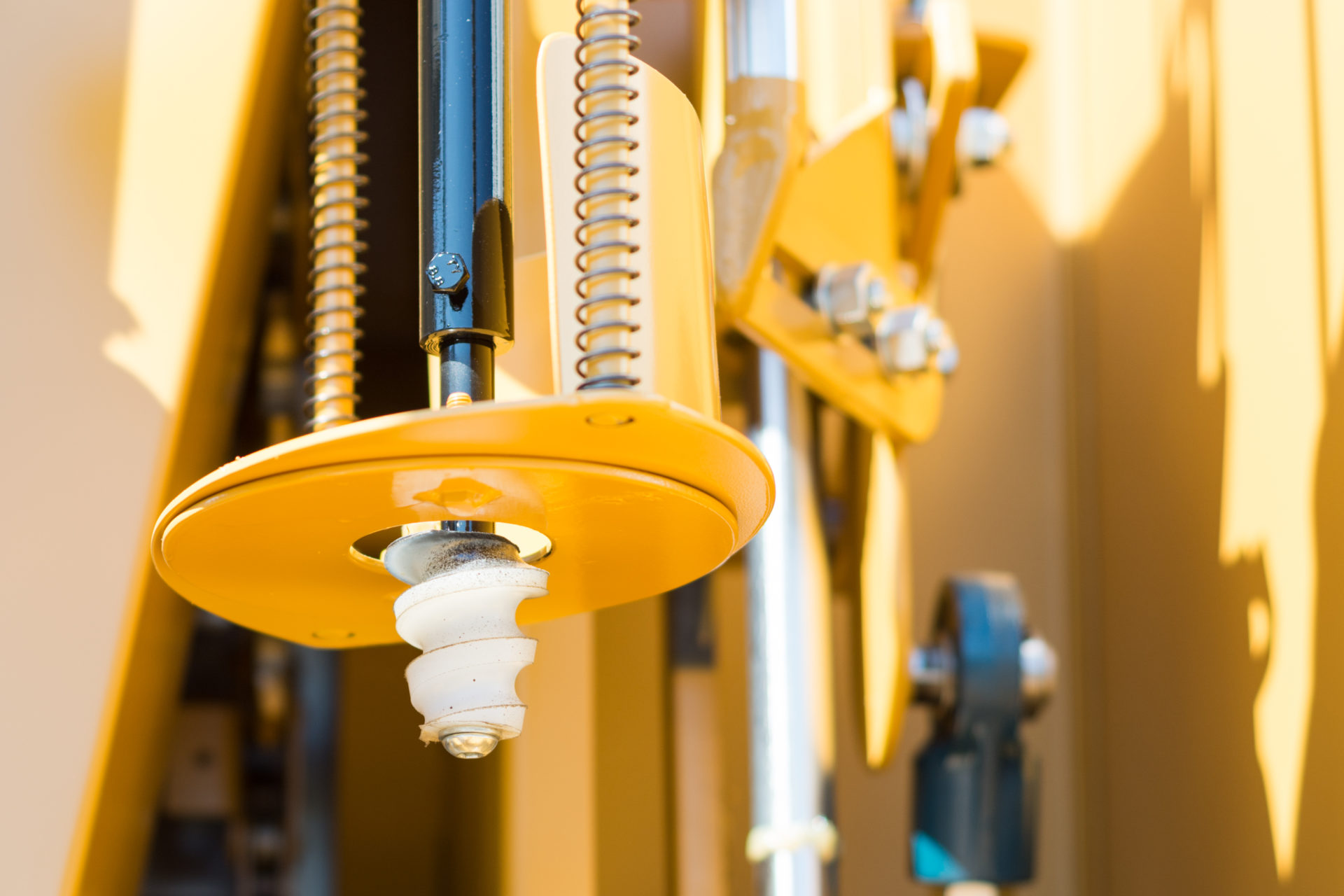

Dibber equipped with 0.5 Hp motor and supplied with 3 different sized spikes, Ø 40, 60 and 100 mm

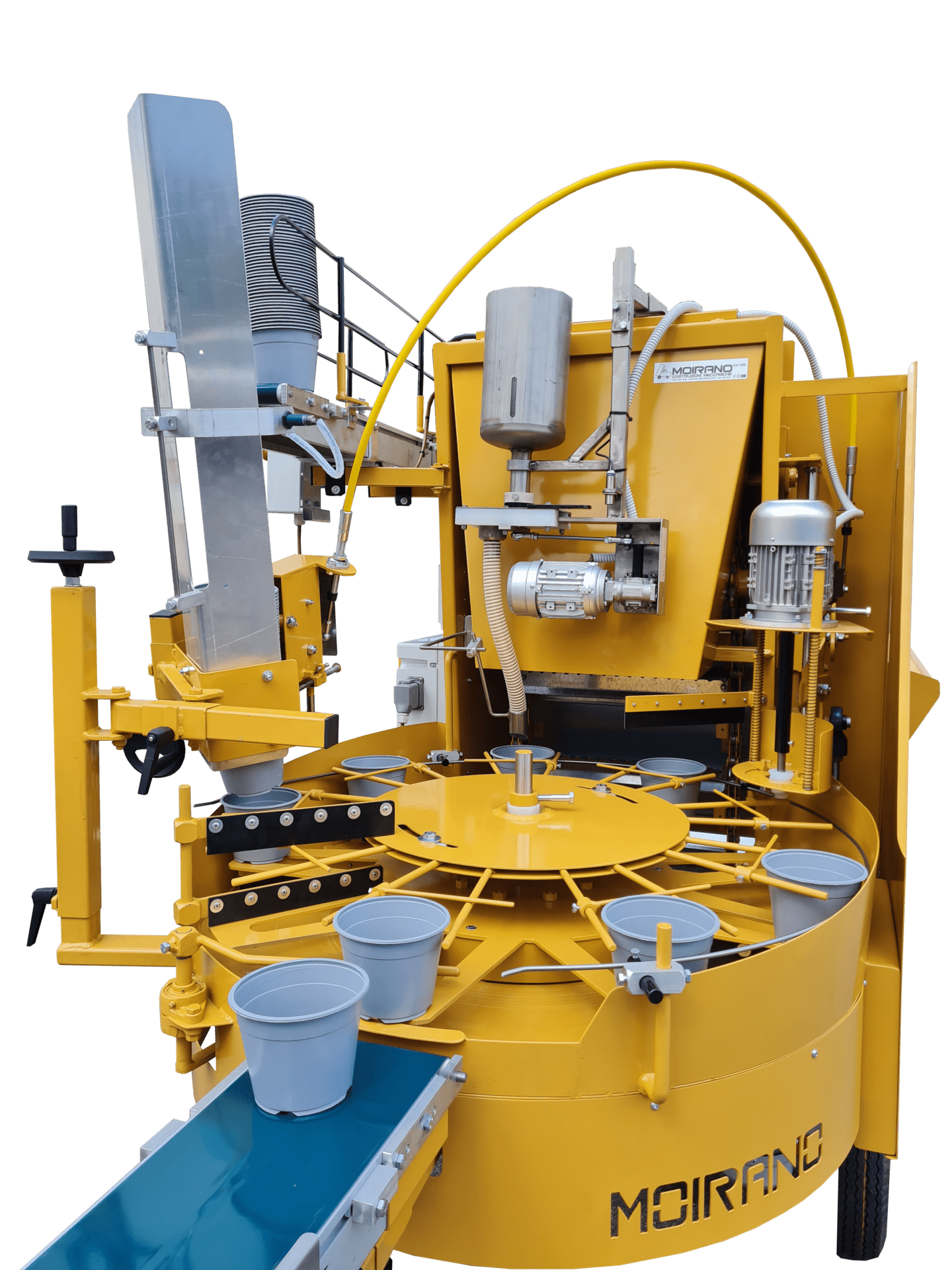

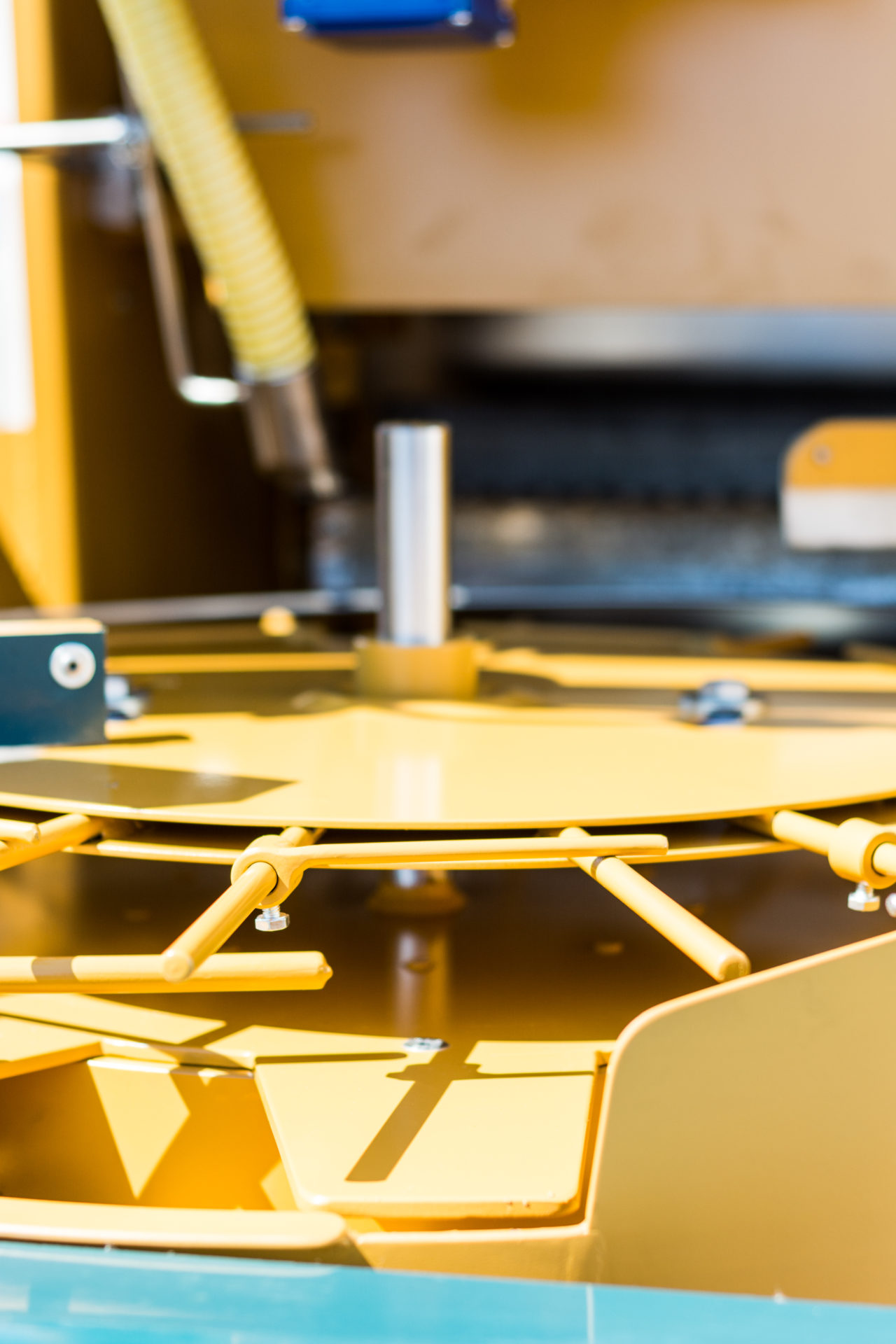

Pot handling carousel with 9 pot capacity

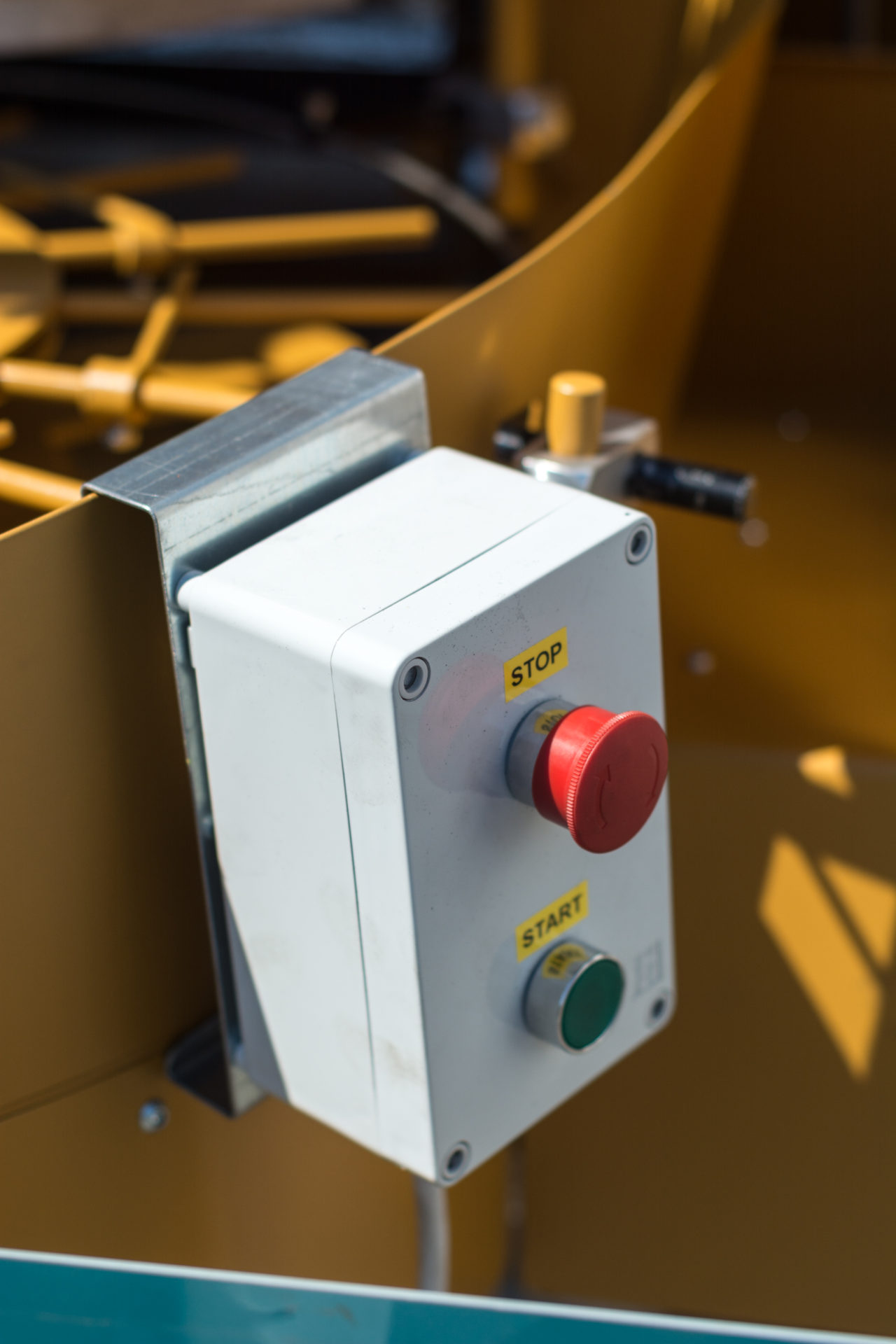

Double emergency stop, one of which is remote
4 robust wheels for relocation, 2 fixed front wheels and 2 swivelling rear wheels

Technical

WEIGHT 600 Kg approx.
DIMENSIONS
Length 3200 mm
Width 1350 mm
Height 2150 mm
HOPPER CAPACITY: 1 m³
POT OUTPUT BELT LENGTH: 3000X200 mm
POTTING CAPACITY: min 300, max 3800 pots per hour
USABLE POT DIAMETERS: from Ø 10 to Ø 24
VOLTAGE: 400 V
POWER ABSORPTION: 2 kW

Optional

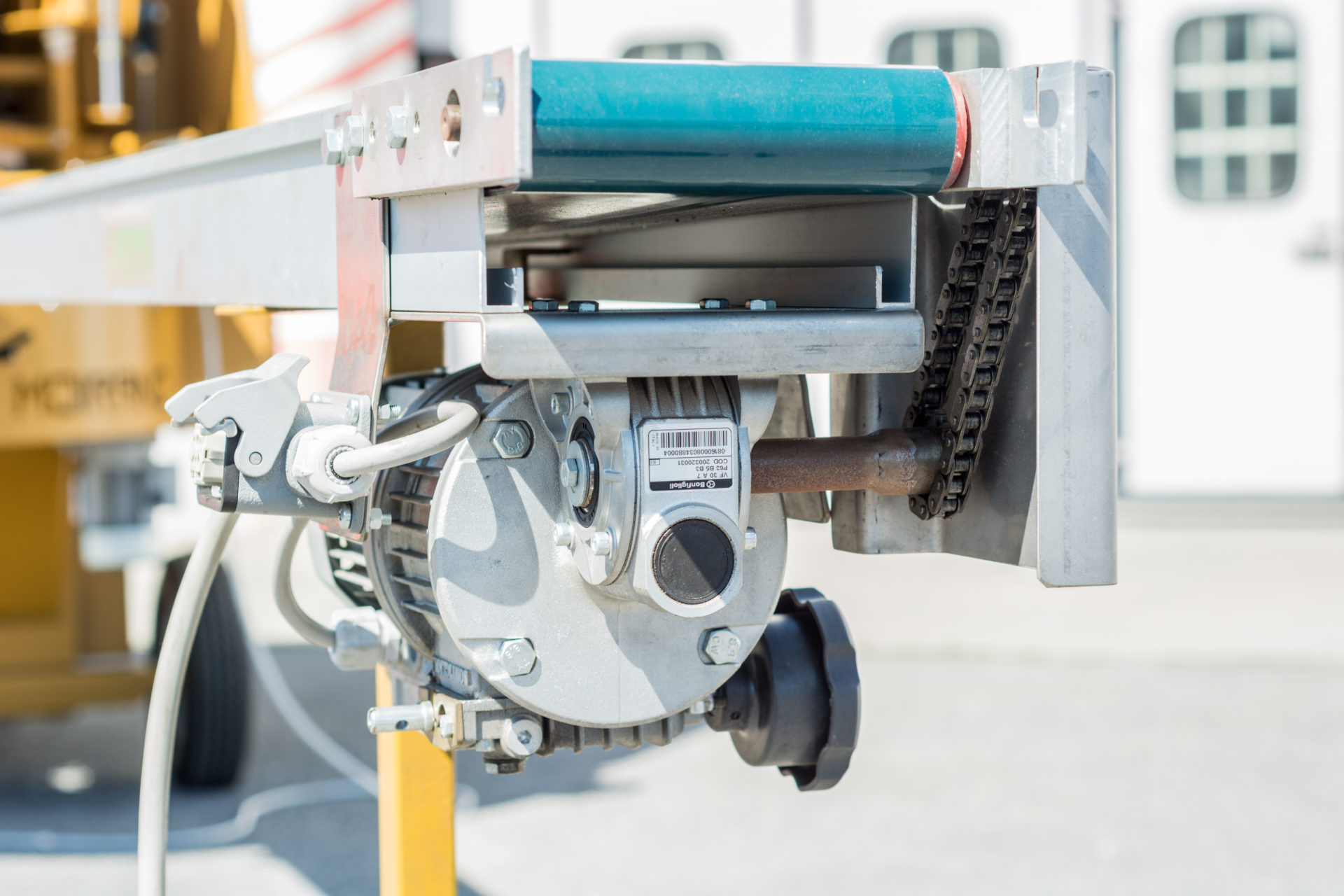

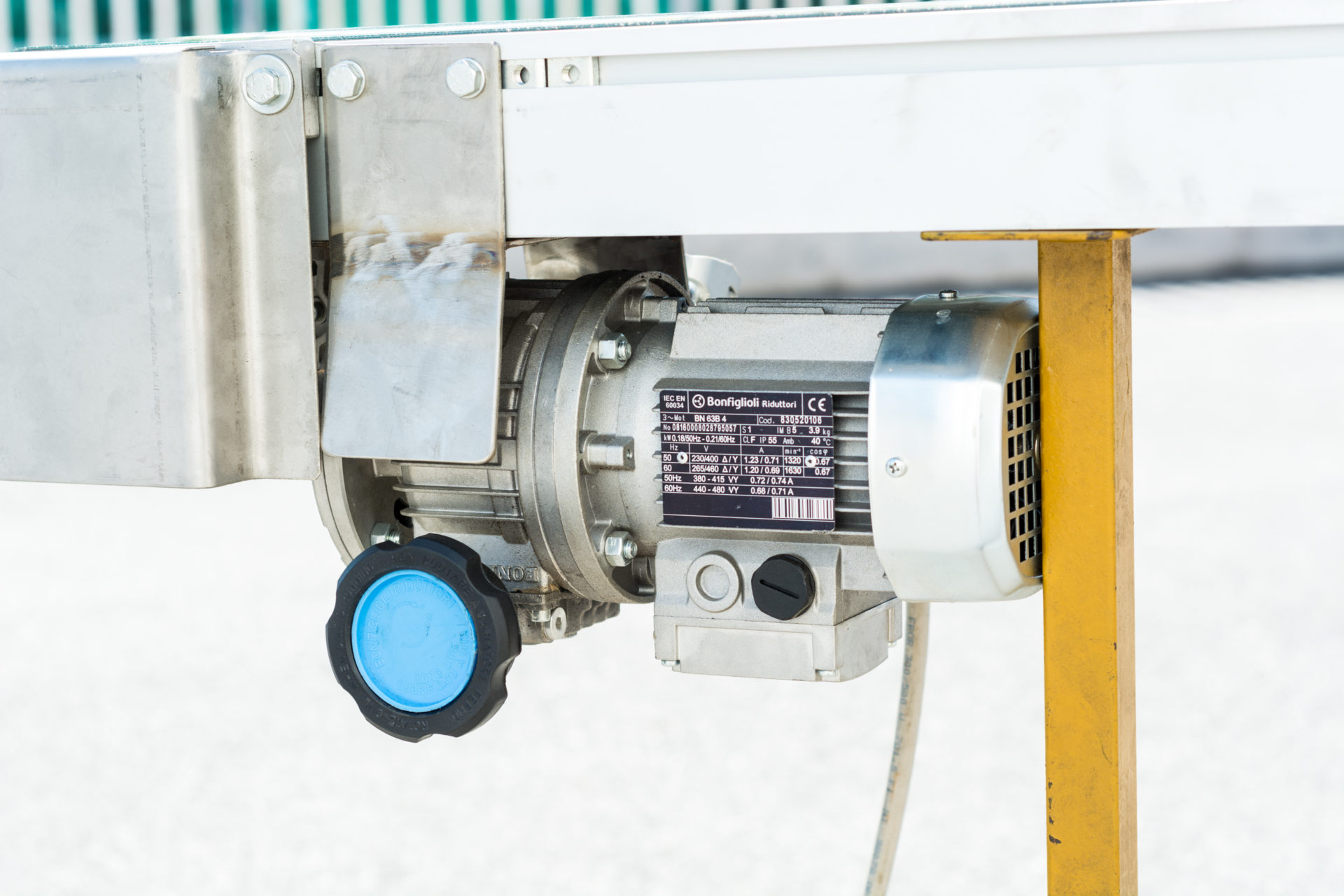

• Gear control on pot output belt for speed regulation
• Spare pot destacker belt

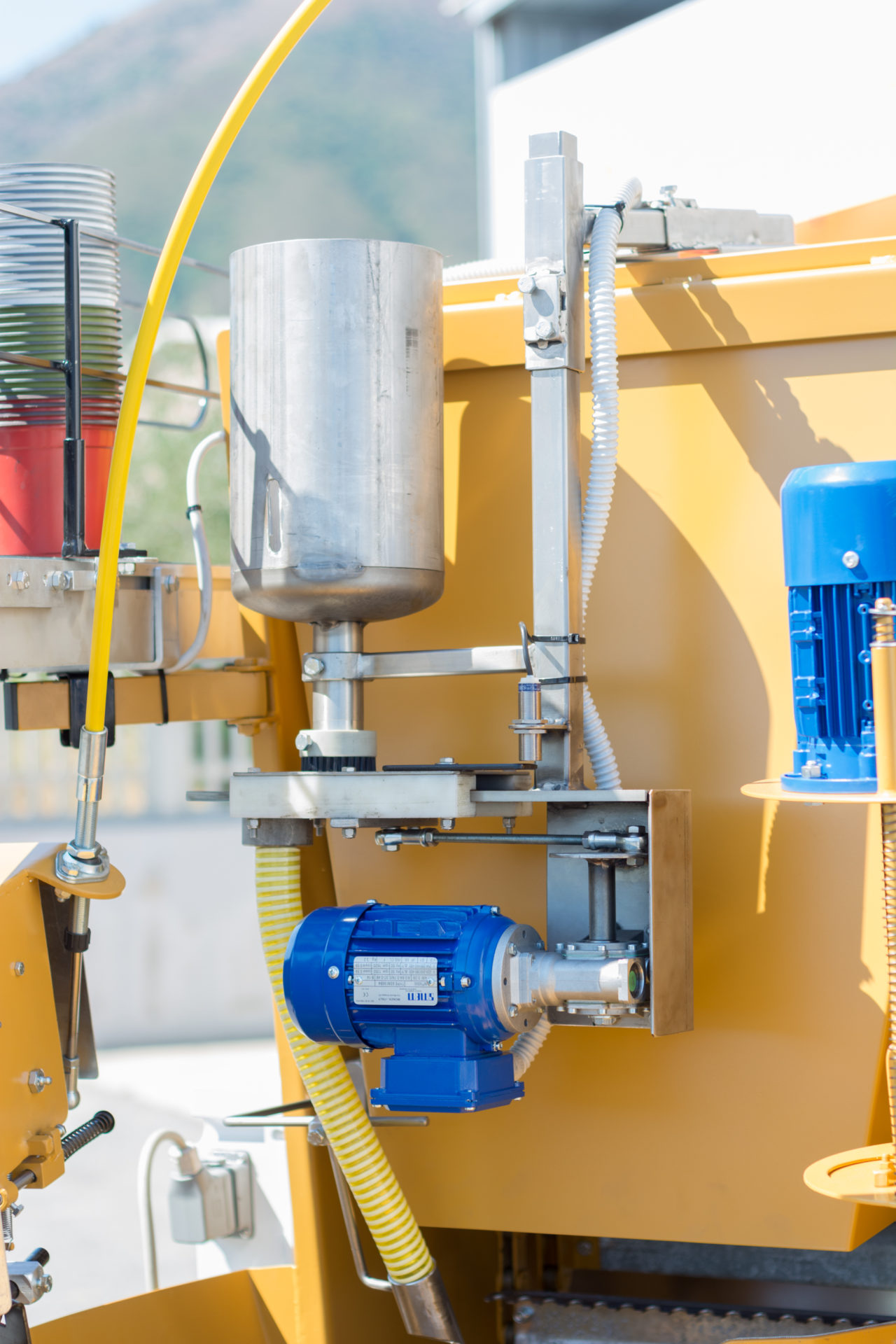

• Additional adjustable stainless steel fertilizer unit

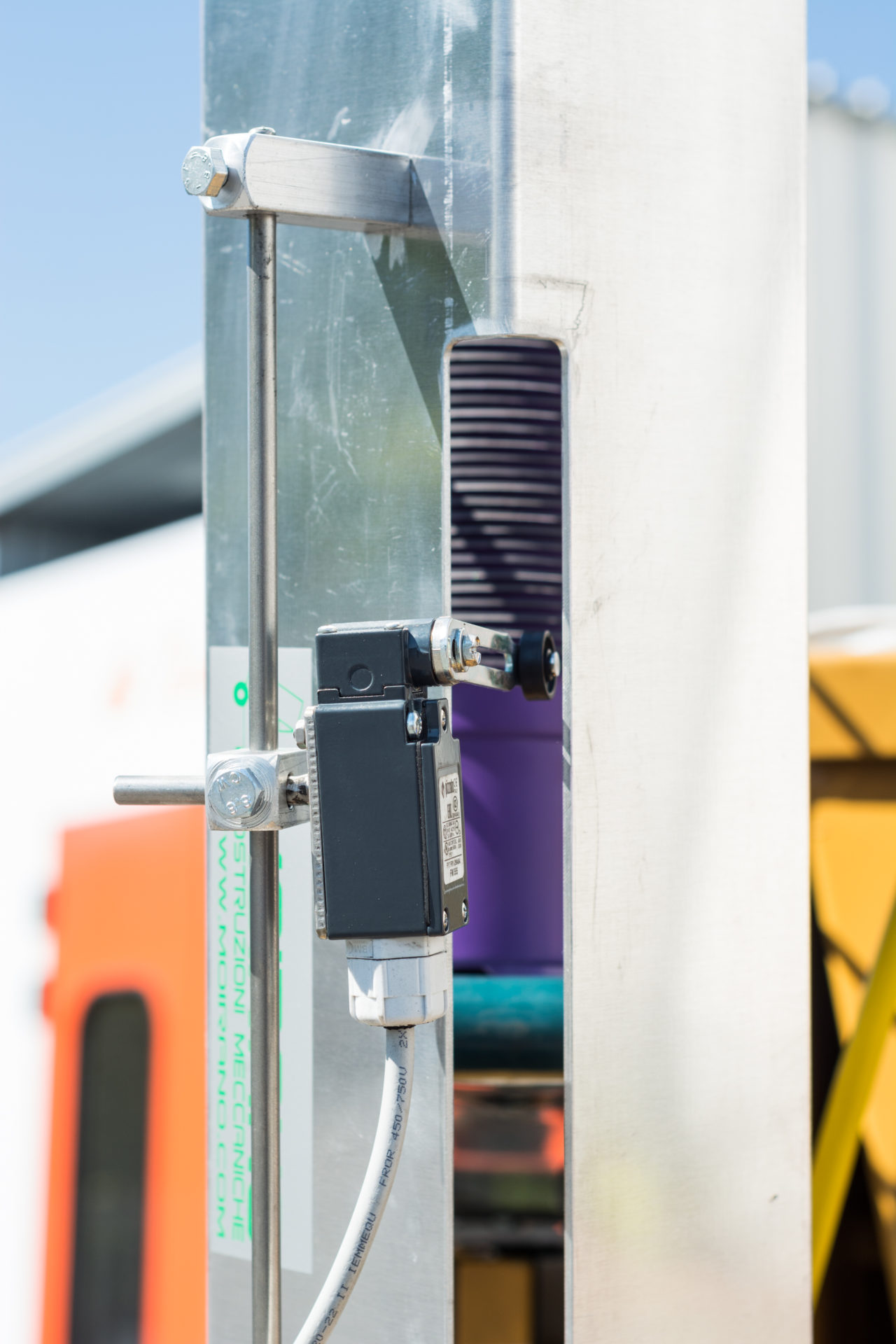

• Pot output belt equipped with safety limit switches connected to machine’s stop mechanism
• Extra-large hopper for loose peat
• MECHANICAL drum seeder (NOT SINGLE SEED)

  • Kit for square pots
